Cypress Dependencies Through A Docker Image

Use a Docker image to cache end-to-end testing dependencies.

If you are testing a website, the DEV dependencies do not change very often. You might bump Cypress version once in a while, add or upgrade a Cypress plugin, but in general the Node dependencies are changed less frequently than the spec files. Thus running npm ci on every test job is bound to be repetitive work that slows down your testing pipelines.

Of course, each CI allows you to cache dependencies between the jobs - but why do you need to even think about it? You want to cache all dependencies the very first time npm ci runs for the given package.json or package-lock.json file, not the first time each the workflow runs! Most CIs let you control the container image used for running tests; I assume you use one of Cypress Docker images or one of Cypress Docker images with browsers installed. So what if we could create our own Docker image based on Cypress (or any appropriate Docker base image you might want) and run npm ci in that image, and then use that Docker image to simply run our current tests?

I had the idea of caching separately PROD and DEV images inside Docker containers a loooong time ago, see the bahmutov/double-docker repo. In this blog post, I will show a simple approach that works for repositories with tests only, the situation described in the blog post Separate Application And Tests Repos GitHub Actions Setup. We will use GitHub Actions and the public Docker registry.

In the nutshell:

  • whenever the user changes package.json or Dockerfile, we build a new Docker image with the node_modules and Cypress binary folders (but no other source code)
  • we push the built Docker image to the registry
  • every CI run simply pulls that Docker image and checks out the tests into the container
  • the tests run immediately after the checkout step, since there is nothing to install

Let's see the code

🎁 I have the working example in the public repo bahmutov/cypress-tests-image.

Dockerfile

First, let's look a the Dockerfile

Dockerfile
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
# pick the image to build from
# either the base or the browsers image

# https://hub.docker.com/r/cypress/base/tags
FROM cypress/base:24.12.0

# https://hub.docker.com/r/cypress/browsers/tags
# FROM cypress/browsers:node-24.12.0-chrome-143.0.7499.169-1-ff-146.0.1-edge-143.0.3650.96-1

# diagnostics
RUN echo "node -v"
RUN echo "npm -v"

# copy ONLY the package.json and package-lock.json files
WORKDIR /e2e
COPY package.json package-lock.json ./

# install npm dependencies
# and put the Cypress binary in the local subfolder
# https://on.cypress.io/installation
ENV CYPRESS_CACHE_FOLDER=/e2e/cypress_cache
RUN npm ci

# verify Cypress installation
RUN npx cypress verify

# the Docker image should have all Cypress OS dependencies installed
# plus inside the "/e2e" folder
# we will have
#   - node_modules with Cypress installed
#   - cypress_cache with the Cypress binary

Tip: you can use yarn.lock or any other lock file with this approach.

I am naming my image bahmutov/cy:<tag>, you can find them at the Docker hub. Note that it is important to build the image on the same OS architecture as the CI machines, in my case it will be ubuntu-latest.

Workflow

The first step in the workflow computes the combined checksum of package.json and Dockerfile files. It also checks if the Docker image tagged with this checksum exists already using action tyriis/docker-image-tag-exists.

.github/workflows/ci.yml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
name: CI
on: push

jobs:
  # computes the hash of package.json and and stores it in the output
  # also checks if the Docker image with this tag already exists
  # outputs:
  #   hash: the package.json hash
  #   tag: whether the Docker image with this tag already exists, "found" or "not found"
  package-hash:
    runs-on: ubuntu-latest
    outputs:
      hash: ${{ steps.hash.outputs.checksum }}
      tag: ${{ steps.tag-exists.outputs.tag }}
    steps:
      - name: Checkout 🛎️
        # https://github.com/actions/checkout
        # only needed to get package.json and Dockerfile to compute the hash
        uses: actions/checkout@v6
        with:
          sparse-checkout: |
            package.json
            Dockerfile

      - name: Package.json + Dockerfile checksum
        id: hash
        run: echo "checksum=${{ hashFiles('package.json', 'Dockerfile') }}" >> $GITHUB_OUTPUT

      # https://github.com/tyriis/docker-image-tag-exists
      - name: Check if Docker image tag exists
        id: tag-exists
        uses: tyriis/[email protected]
        with:
          registry: docker.io
          repository: bahmutov/cy
          # The container image tag
          tag: ${{ steps.hash.outputs.checksum }}

      - name: Report the check results
        # print the tag result into Github Actions summary
        run: |
          echo "## Docker image check" >> $GITHUB_STEP_SUMMARY
          echo "Package.json + Dockerfile hash: ${{ steps.hash.outputs.checksum }}" >> $GITHUB_STEP_SUMMARY
          echo "Docker image bahmutov/cy:${{ steps.hash.outputs.checksum }} **${{ steps.tag-exists.outputs.tag }}**" >> $GITHUB_STEP_SUMMARY

Build and push

Great, let's build the Docker image if one is missing. We could have a job with every internal step using a condition:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
build-docker-image:
  # builds the Docker image and pushes it to the Docker hub
  # but only if it does not exist yet
  runs-on: ubuntu-latest
  needs: package-hash
  steps:
    - name: Checkout 🛎️
      if: ${{ needs.package-hash.outputs.tag == 'not found' }}
      # https://github.com/actions/checkout
      uses: actions/checkout@v6

    - name: Log in to Docker Hub
      if: ${{ needs.package-hash.outputs.tag == 'not found' }}
      # https://github.com/docker/login-action
      uses: docker/login-action@f4ef78c080cd8ba55a85445d5b36e214a81df20a
      ...

But I think there is a slightly nicer way. We can control the entire job by the needs.package-hash.outputs.tag value and skip it, if the image exists:

.github/workflows/ci.yml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
name: CI
on: push

jobs:
  # computes the hash of package.json and and stores it in the output
  # also checks if the Docker image with this tag already exists
  # outputs:
  #   hash: the package.json hash
  #   tag: whether the Docker image with this tag already exists, "found" or "not found"
  package-hash:
    runs-on: ubuntu-latest
    outputs:
      hash: ${{ steps.hash.outputs.checksum }}
      tag: ${{ steps.tag-exists.outputs.tag }}
    steps:
      ...

  build-docker-image:
    # builds the Docker image and pushes it to the Docker hub
    # but only if it does not exist yet
    runs-on: ubuntu-latest
    needs: package-hash
    if: ${{ needs.package-hash.outputs.tag == 'not found' }}
    steps:
      - name: Checkout 🛎️
        # https://github.com/actions/checkout
        uses: actions/checkout@v6

      - name: Log in to Docker Hub
        # https://github.com/docker/login-action
        uses: docker/login-action@f4ef78c080cd8ba55a85445d5b36e214a81df20a
        with:
          username: ${{ secrets.DOCKER_USERNAME }}
          password: ${{ secrets.DOCKER_PASSWORD }}

      # we could also use the action
      # https://github.com/docker/build-push-action

      - name: Build docker image
        run: docker build -t bahmutov/cy:${{ needs.package-hash.outputs.hash }} .

      - name: Push Docker images
        run: docker push bahmutov/cy:${{ needs.package-hash.outputs.hash }}

Test

Now that we have Docker image build (if needed), let's use it. We can define another job that simply uses the bahmutov/cy:<tag> container, but it cannot depend on the build-docker-image job - if the job is skipped on GitHub Actions, any job that depends on it will be skipped too. Luckily, there is an easy fix: simply have yet another job that will simply "ping" build-docker-image job status. Once the build-docker-image job finishes or is skipped, our "ping" job resolves. The "ping" is done using lewagon/wait-on-check-action 3rd-party action. Here is how the last part of the workflow looks:

.github/workflows/ci.yml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
name: CI
on: push

jobs:
  # computes the hash of package.json and and stores it in the output
  # also checks if the Docker image with this tag already exists
  # outputs:
  #   hash: the package.json hash
  #   tag: whether the Docker image with this tag already exists, "found" or "not found"
  package-hash:
    ...
  build-docker-image:
    # builds the Docker image and pushes it to the Docker hub
    # but only if it does not exist yet
    runs-on: ubuntu-latest
    needs: package-hash
    if: ${{ needs.package-hash.outputs.tag == 'not found' }}
    ...

  wait-for-build:
    # a trick to allow other jobs to run, even if the "build" job is skipped
    # runs in parallel with the "build" job and keeps checking if it is finished
    # or is skipped
    runs-on: ubuntu-latest
    needs: package-hash
    steps:
      - name: Wait for the Docker image build / skip
        # https://github.com/lewagon/wait-on-check-action
        uses: lewagon/[email protected]
        with:
          ref: ${{ github.ref }}
          check-name: build-docker-image
          repo-token: ${{ secrets.GITHUB_TOKEN }}
          # seconds between checks
          wait-interval: 10

  test:
    # this job finishes after the Docker image is built (or exists already)
    runs-on: ubuntu-latest
    needs: [package-hash, wait-for-build]
    container: bahmutov/cy:${{ needs.package-hash.outputs.hash }}
    steps:
      - name: Checkout 🛎️
        # https://github.com/actions/checkout
        uses: actions/checkout@v6

      # THE IMPORTANT STEP: symlink the node modules
      # from the Docker image into the working folder
      # so we can skip the installation step
      - name: Symlink node modules
        run: ln -s /e2e/node_modules ./node_modules

      - name: Print Cypress version
        run: npx cypress --version

      - name: Run Cypress tests
        run: npx cypress run

The sym linking step is very important. After checkout finishes, the container has the following code

1
2
3
4
5
6
7
8
/e2e/
  cypress_cache/
  node_modules/
/<folder with checked out source code>/
  cypress/
  cypress.conf.js
  package.json
  package-lock.json

The current directory is set to /<folder with checked out source code>, so we need to make sure Node and Cypress can find the DEV dependencies. We do it by creating the symlink:

1
2
3
4
5
6
7
8
9
/e2e/
  cypress_cache/
  node_modules/
/<folder with checked out source code>/
  node_modules -> /e2e/node_modules/
  cypress/
  cypress.conf.js
  package.json
  package-lock.json

We tell Cypress NPM module to find its binary in the /e2e/cypress_cache/ folder by using the environment variable baked into the Dockerfile: ENV CYPRESS_CACHE_FOLDER=/e2e/cypress_cache.

Run

Let's confirm that it works. We can push the code for the very first time, or change package.json or Dockerfile

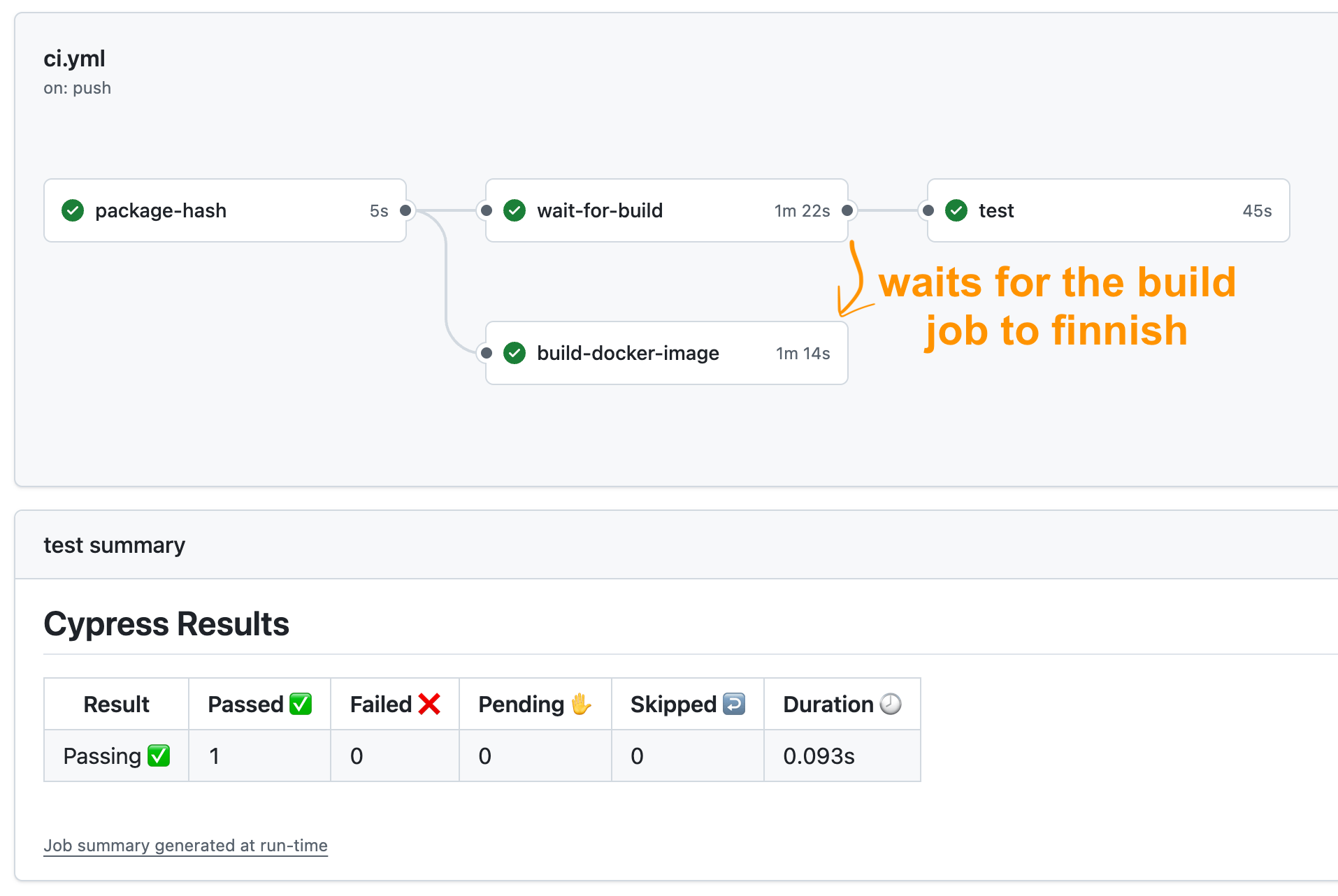

The Docker image is built and pushed

The build and push step took 1m14s, and the "ping" job that checked the job status every ten seconds finished in 1m22s. The test job simply pulled the Docker container and ran the specs, without any additional installation or resting a cache.

Test job steps

Pulling the container from the Docker image is by far the longest step in the job.

Now let's push another commit - maybe we changed the specs, but haven't touched the package.json or Dockerfile. The Docker image should have been found.

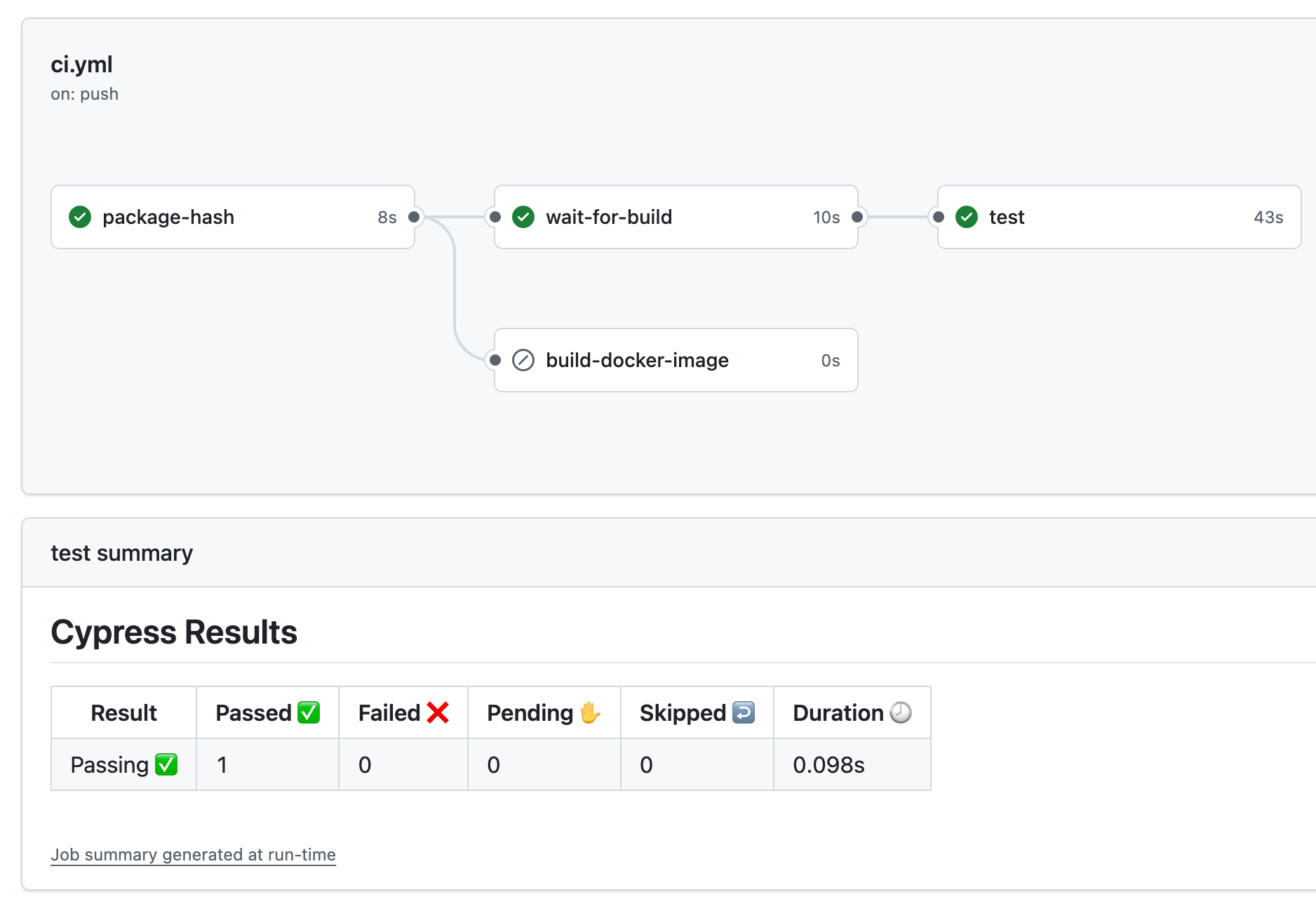

The workflow when the Docker image with DEV dependencies already exists

We start testing pretty quickly, since we don't have to install or build anything.

Cypress Action

Many years ago I wrote cypress-io/github-action, and I am happy to report that it works well with the Docker image with baked DEV dependencies. Here is another workflow job that simply uses the action after sym linking:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
test-action:
  # this job finishes after the Docker image is built (or exists already)
  # and verifies the Cypress GitHub action works
  runs-on: ubuntu-latest
  needs: [package-hash, wait-for-build]
  container: bahmutov/cy:${{ needs.package-hash.outputs.hash }}
  steps:
    - name: Checkout 🛎️
      # https://github.com/actions/checkout
      uses: actions/checkout@v6

    # the important step: symlink the node modules
    # from the Docker image into the working folder
    # so we can skip the installation step
    - name: Symlink node modules
      run: ln -s /e2e/node_modules ./node_modules

    # confirm the Cypress action works
    - name: Cypress action
      # https://github.com/cypress-io/github-action
      uses: cypress-io/github-action@v6
      with:
        install: false

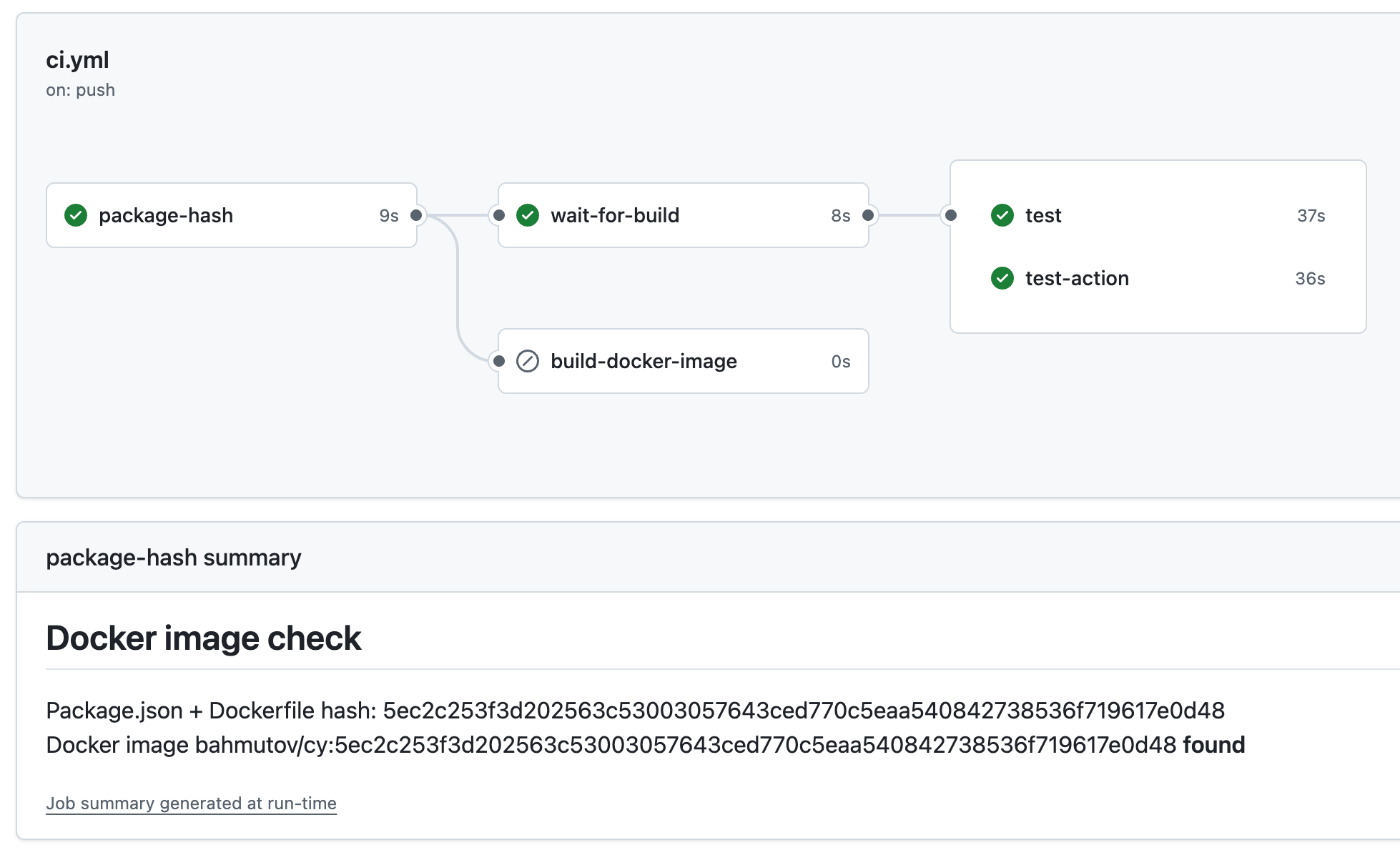

The workflow with both custom and Cypress action test jobs

Finally, the GitHub Actions summary tells us if the Docker image exists or not based on the checksum.

GitHub Container Registry

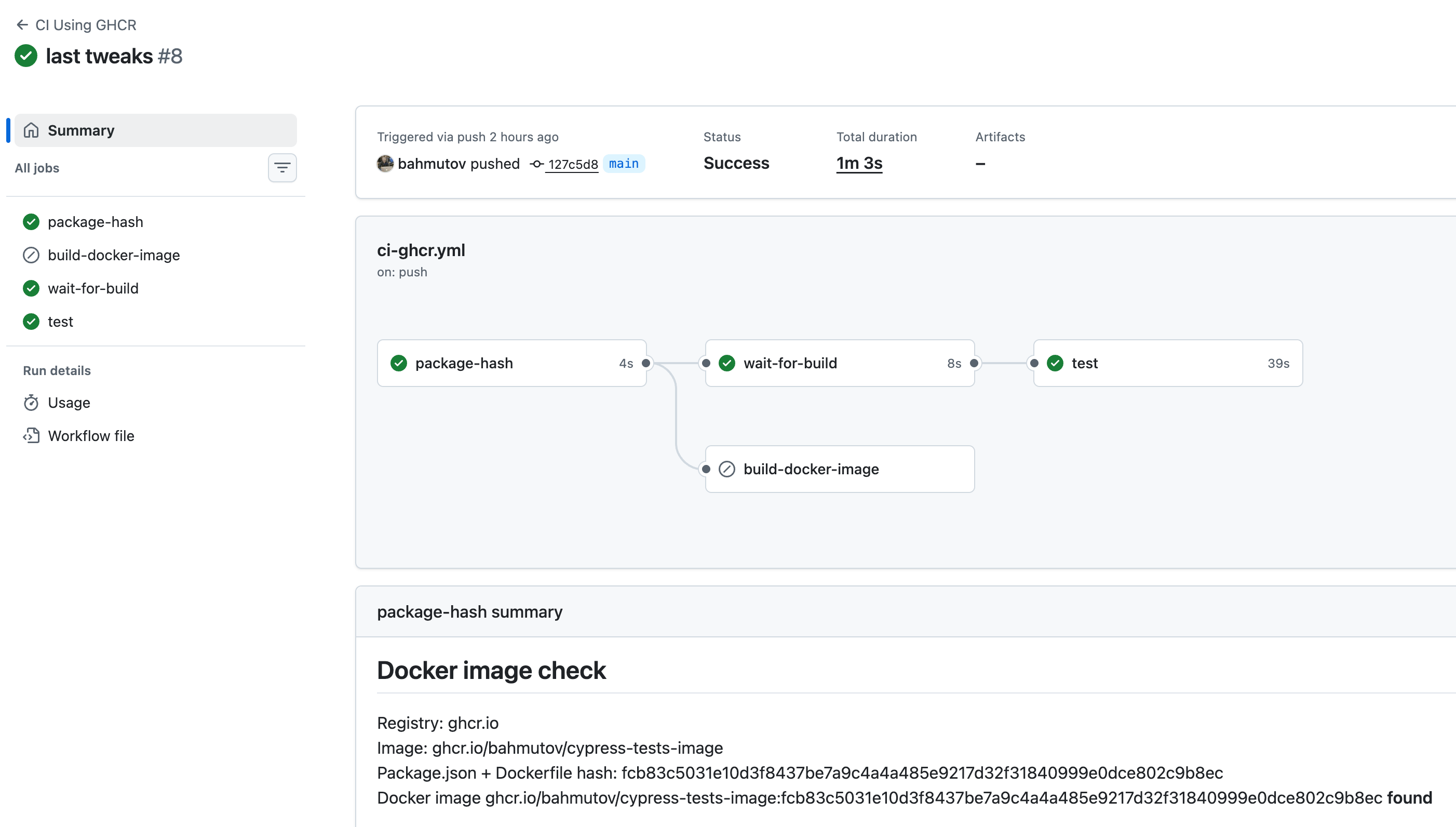

If you are using GH Container registry, you can use the same Docker image approach, here is the example workflow from bahmutov/cypress-tests-image repo.

.github/workflows/ci-ghcr.yml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
# this workflow uses Docker images via GitHub Container Registry (GHCR)
name: CI Using GHCR
on: push

env:
  REGISTRY: ghcr.io
  IMAGE_NAME: ${{ github.repository }}

jobs:
  # computes the hash of package.json and and stores it in the output
  # also checks if the Docker image with this tag already exists
  # outputs:
  #   hash: the package.json hash
  #   tag: whether the Docker image with this tag already exists, "found" or "not found"
  package-hash:
    runs-on: ubuntu-latest
    outputs:
      hash: ${{ steps.hash.outputs.checksum }}
      tag: ${{ steps.tag-exists.outputs.tag }}
    steps:
      - name: Checkout 🛎️
        # https://github.com/actions/checkout
        # only needed to get package.json and Dockerfile to compute the hash
        uses: actions/checkout@v6
        with:
          sparse-checkout: |
            package.json
            Dockerfile

      - name: Package.json + Dockerfile checksum
        id: hash
        run: echo "checksum=${{ hashFiles('package.json', 'Dockerfile') }}" >> $GITHUB_OUTPUT

      # https://github.com/tyriis/docker-image-tag-exists
      - name: Check if Docker image tag exists
        id: tag-exists
        uses: tyriis/[email protected]
        with:
          registry: ${{ env.REGISTRY }}
          repository: ${{ env.IMAGE_NAME }}
          # The container image tag
          tag: ${{ steps.hash.outputs.checksum }}

      - name: Report the check results
        # print the tag result into Github Actions summary
        run: |
          echo "## Docker image check" >> $GITHUB_STEP_SUMMARY
          echo "Registry: ${{ env.REGISTRY }}" >> $GITHUB_STEP_SUMMARY
          echo "Image: ${{ env.REGISTRY }}/${{ env.IMAGE_NAME }}" >> $GITHUB_STEP_SUMMARY
          echo "Package.json + Dockerfile hash: ${{ steps.hash.outputs.checksum }}" >> $GITHUB_STEP_SUMMARY
          echo "Docker image ${{ env.REGISTRY }}/${{ env.IMAGE_NAME }}:${{ steps.hash.outputs.checksum }} **${{ steps.tag-exists.outputs.tag }}**" >> $GITHUB_STEP_SUMMARY

  build-docker-image:
    # builds the Docker image and pushes it to the registry
    # but only if it does not exist yet
    runs-on: ubuntu-latest
    needs: package-hash
    permissions:
      # don't forget to allow workflows to write to GHCR
      # https://github.com/<org>/<repo>/settings/actions
      packages: write
    if: ${{ needs.package-hash.outputs.tag == 'not found' }}
    steps:
      - name: Checkout 🛎️
        # https://github.com/actions/checkout
        uses: actions/checkout@v6

      - name: Log in to GitHub Container Registry
        # https://github.com/docker/login-action
        uses: docker/login-action@f4ef78c080cd8ba55a85445d5b36e214a81df20a
        with:
          registry: ${{ env.REGISTRY }}
          username: ${{ github.actor }}
          password: ${{ secrets.GITHUB_TOKEN }}

      # we could also use the action
      # https://github.com/docker/build-push-action

      - name: Build docker image
        run: docker build -t ${{ env.REGISTRY }}/${{ env.IMAGE_NAME }}:${{ needs.package-hash.outputs.hash }} .

      - name: Push Docker image to the correct registry
        run: docker push ${{ env.REGISTRY }}/${{ env.IMAGE_NAME }}:${{ needs.package-hash.outputs.hash }}

  wait-for-build:
    # a trick to allow other jobs to run, even if the "build" job is skipped
    # runs in parallel with the "build" job and keeps checking if it is finished
    # or is skipped
    runs-on: ubuntu-latest
    needs: package-hash
    steps:
      - name: Wait for the Docker image build / skip
        # https://github.com/lewagon/wait-on-check-action
        uses: lewagon/[email protected]
        with:
          ref: ${{ github.ref }}
          check-name: build-docker-image
          repo-token: ${{ secrets.GITHUB_TOKEN }}
          # seconds between checks
          wait-interval: 10

  test:
    # this job finishes after the Docker image is built (or exists already)
    runs-on: ubuntu-latest
    needs: [package-hash, wait-for-build]
    # seems we cannot use the env variables here
    container: ghcr.io/${{ github.repository }}:${{ needs.package-hash.outputs.hash }}
    steps:
      - name: Checkout 🛎️
        # https://github.com/actions/checkout
        uses: actions/checkout@v6

      # THE IMPORTANT STEP: symlink the node modules
      # from the Docker image into the working folder
      # so we can skip the installation step
      - name: Symlink node modules
        run: ln -s /e2e/node_modules ./node_modules

      - name: Print Cypress version
        run: npx cypress --version

      - name: Run Cypress tests
        run: npx cypress run

I tried to make the workflow slightly more generic by moving the registry and the image into the env variables:

1
2
3
env:
  REGISTRY: ghcr.io
  IMAGE_NAME: ${{ github.repository }}

Docker image via GitHub container registry

Nice.
